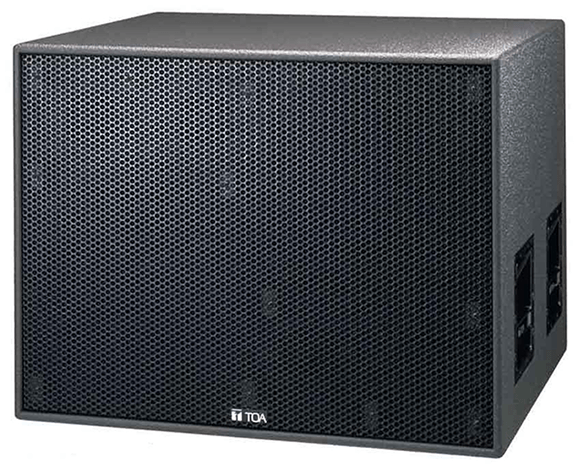

SR-L09
Featuring high power, high quality and rugged construction, the SR-L09 is a subwoofer system that can be used for on-the-road applications as well as permanent installation.
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | 900 W (continuous program) 300 W (continuous pink noise) |
| Rated Impedance | 4 Ω |
| Sensitivity | 96 dB (1 W, 1 m) |
| Frequency Response | 35 Hz - 1 kHz |
| Crossover Frequency | 125 Hz (when recommended parameters are applied by the optional DP-SP3) |
| Speaker Component | Low frequency: 38 cm cone-type x 2 |
| Input Connector | Neutrik NL4MP and M5 screw terminal, distance between barriers: 12.2 mm |
| Finish | Enclosure: Plywood, black, paint Front grille: Steel plate, black, acrylic paint |
| Dimensions | 829 (W) × 629 (H) × 606 (D) mm |
| Weight | 67 kg |
