SR-F05

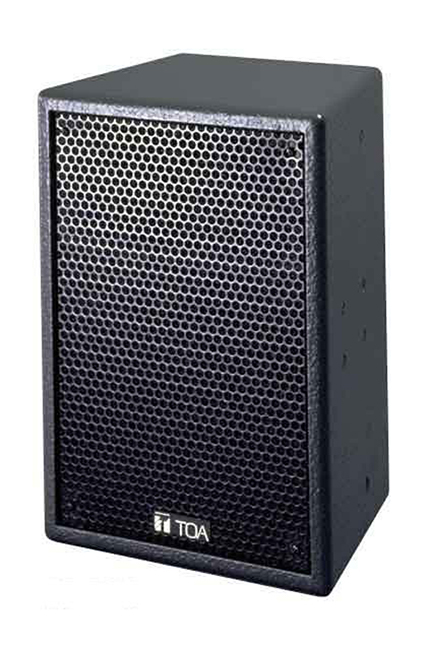

The SR-F05 is a 2-way speaker system featuring high power handling capacity, high quality sound, and heavy-duty construction. It is driven by a single amplifier having a built-in passive network. Recommended digital speaker processor is the DP-SP3 (option).
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | 450 W (continuous program) 150 W (continuous pink noise) |
| Rated Impedance | 8 Ω |
| Sensitivity | 99 dB (1 W, 1 m) |
| Frequency Response | 60 Hz - 18 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Crossover Frequency | 2 kHz |
| Speaker Component | Low frequency: 25 cm dia. cone-type High frequency: CD horn (90゜ horizontal × 40゜ vertical) fitted with compression driver |
| Input Connector | M5 screw terminal, distance between barriers: 13 mm Neutrik NL4MPXX × 2 |
| Finish | Enclosure: MDF, dark gray, urethane coating Front grille: Black, acrylic paint |
| Dimensions | 315 (W) × 444 (H) × 241 (D) mm |
| Weight | 18 kg |
