N-8050DS Door Station

N-8050DS Door Station

N-8050DS

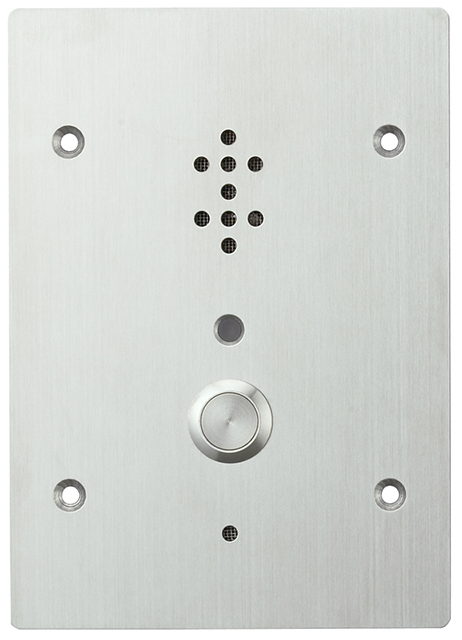

Designed to connect to the IP Intercom Exchange, the N-8050DS is a door station featuring high quality hands-free conversation. It has a contact output (momentarily closed) to remotely control an electronic door lock. It is in full conformity with IP54 water-proof and dust-proof standards. The operating temperature range is -10 to 50℃. As provided with guard nets inside to cover over the openings of microphone and speaker, the N-8050DS can be installed free from care in public space.

* 0 dB = 1 V
Power Source 48 V DC (supplied from the IP intercom exchange (option))
Power Consumption 1.8 W (at rated), 2.4 W (max.)
Wiring Method 1 set of twisted pair cable
Transmission System 2 wire 160 kbps echo canceller transmission system
Signal Level 0 dB* or less
Speech Method Hands-free conversation
Audio Frequency Range 300 Hz - 7 kHz
Transmission Range Max. 1500 m (φ0.65 mm. Loop resistance 170 Ω)
Hands-free Speaker: 3.5 cm cone-type, 1 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Contact Output Open collector output, withstand voltage: Max. 30 V DC,
control current: Max. 50 mA, one shot: can be set from 1 to 9 s,
screw terminal (polarized)
Indication Status lamp
Line Connecting Terminal 2 wire, screw terminal (non-polar)
Setting Method Flush-mount/Surface-mount
Operating Temperature -10 ℃ to +50 ℃
Operating Humidity 90 %RH or less (no condensation)
Housing Protection BS EN62262: 2002: IK02 equivalent
Dust/Water Protection IP54 (Note that panel edges must be sealed at installation.)
Finish Plate: Stainless steel (SUS304), hairline
Call button: Metal
Dimensions 115 (W) x 162 (H) x 54 (D) mm
Weight 680 g
Accessory Box mounting screw (No.6-32UNC × 18) …4,
Box mounting screw (M4 × 25) …4, Acoustic absorbent (made of felt) …1
Applicable Box (option) For flush mount: 3-gang electrical box or Back Box YC-150
For wall mount: Wall-mount Box YS-13A
