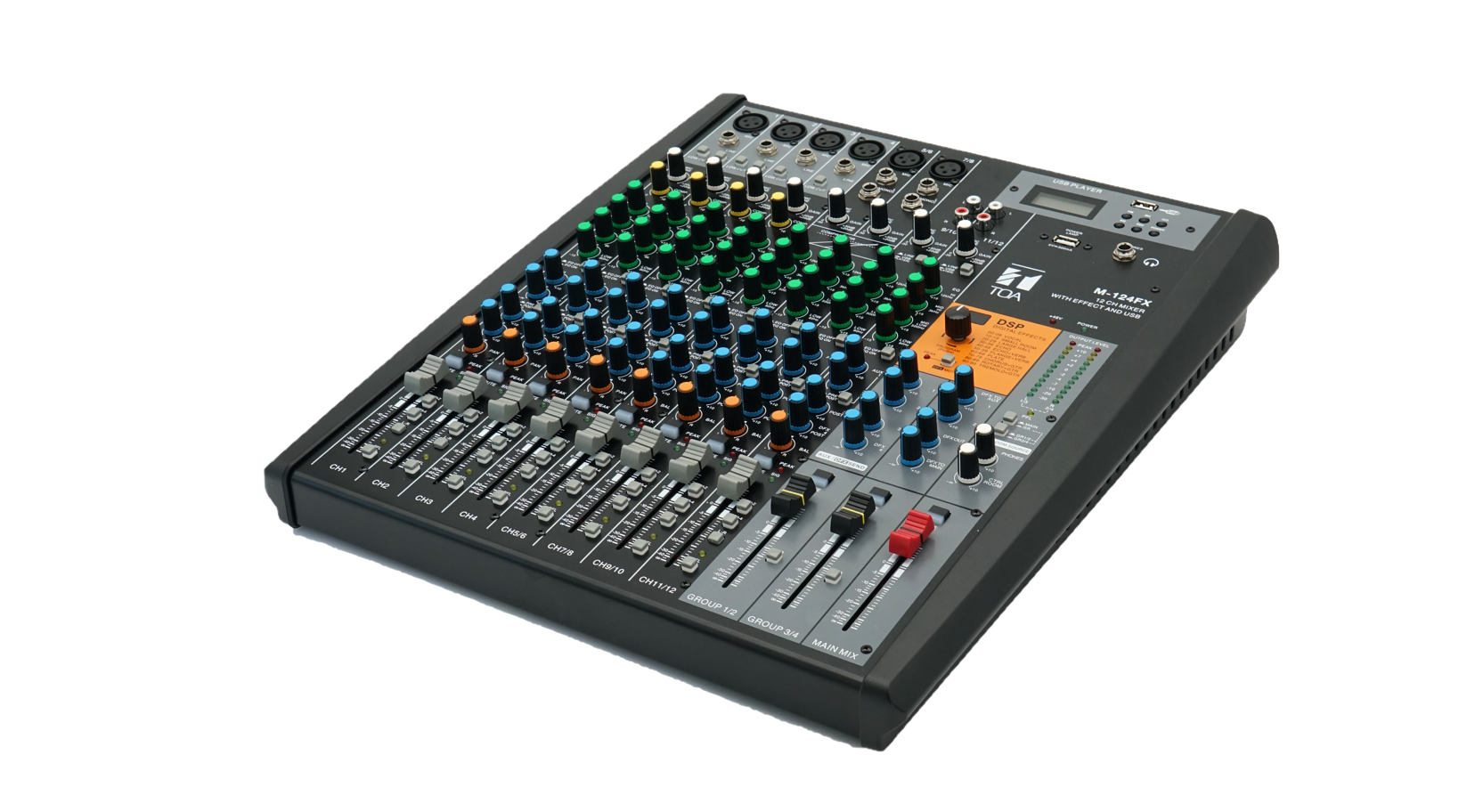

M-124FX-AS *AS Model*
The M-124FX is a professional compact 12 Channel Mixing Console with great quality and better reliability.
You will get smooth, accurate, more natural and open sound from this apparatus. It is the ideal mixer for gigs, recording and fixed PA installations.
| Power source | 100 - 240 V AC, 50 / 60 Hz |
| Power consumption | 30W |
| Audio Input |
MIC input 1-8: -50dBu, 1.8 kΩ, electronic balanced, female XLR connector LINE input 1-4: -30dBu, 10 kΩ, electronic balanced, TRS phone-jack LINE input 5-8: -30 dBu, 10 kΩ, stereo pair, electronic balanced, TRS phone-jack LINE input 9-12: -30 dBu, 10 kΩ, stereo pair, unbalanced, RCA connector MAIN INSERT: 0 dBu, 10 kΩ, stereo pair, unbalanced, TRS phone-jack USB input: Audio formats: MP3, Format: FAT16, FAT32, Max. 32GB, USB(A) connector PC input: -30 dBu, USB(B) connector |
| Audio Output | MAIN MIX OUTPUT: 0 dBu, 120 Ω, stereo pair, electronic balanced, male XLR connector/TRS phone-jack MAIN INSERT: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack DFX OUT: 0 dBu, 120 Ω, stereo pair unbalanced, TRS phone-jack CTRL ROOM: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack GROUP OUT 1-4: 0 dBu, 120Ω, stereo pair, unbalanced, TRS phone-jack AUX SEND 1-4: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack PHONES: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack PC out: 0 dBu, USB(B) connector |
| Frequency response | 20 Hz - 20 kHz ±3 dB |
| Total Harmonic Distortion | 0.03 % (LPF 20 kHz) |
| S/N ratio | Over 100 dB (A weighted) |
| Crosstalk | Over 90 dB (A weighted) |
| Mute | Over 120 dB (A weighted) |
| Compressor | 0 ~ 10 dB |
| Equaliser | Channel 1–4: ±15 dB at 80 Hz, ±12 dB at 100 Hz–8 kHz, ±15 dB at 12 kHzChannel 5–12: ±12 dB at 80 Hz, ±15 dB at 500 Hz, ±15 dB at 3 kHz, ±12 dB at 12 kHz |
| DSP Digital effects | 100 Preset effects: vocal, small room, large hall, echo, echo+reverb, flanger+reverb, plate, chorus (guitar), rotary (guitar), tremolo (guitar) |
| Phantom Power | +48 VDC, switchable, MIC input 1–8 |
| Indicators | Power (green) ×1, +48V (red) ×1, Mute (red) ×11, Signal (green) ×8, Peak (red) ×8, Output level (green) ×18, (yellow) ×4, (red) ×2, PFL (yellow) ×9, DFX mute (red) ×1, Compressor (yellow) ×4 |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Case: Surface-treated steel plate, black, paint |
| Dimensions | 388.1 (W) × 433.2 (H) × 89.4 (D) mm (15.28" × 17.05" × 3.52") |
| Weight | 5.5 kg |
| Accessory | ER type power cable ×1, UK type power cable ×1, rack mounting bracket ×2, rack mounting screw ×8 |
