VM-2000 Series

RM-200M Remote Microphone

RM-200M Remote Microphone

RM-200M

The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.

VM-2120 System Management Amplifier (ER Version)

VM-2120 System Management Amplifier (ER Version)

VM-2120 ER

The VM-2120 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/83 Ω application the unit features the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.

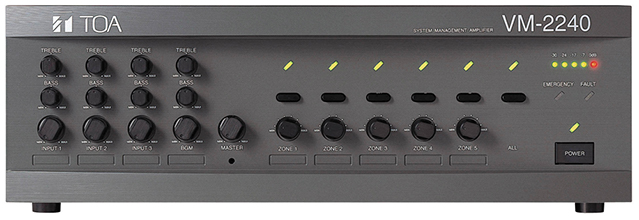

VM-2240 System Management Amplifier (ER Version)

VM-2240 System Management Amplifier (ER Version)

VM-2240 ER

The VM-2240 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions(*1) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/42 Ω application the unit features the surveillance function(*2) which automatically checks the system for failures. (*1) An optional EV-200M Voice Announcement Board is required. (*2) An optional SV-200MA Surveillance Board is required.

RM-210 Remote Microphone Extension

RM-210 Remote Microphone Extension

RM-210

The RM-210 is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

WB-RM200 Wall Mount Bracket

WB-RM200 Wall Mount Bracket

WB-RM200

The WB-RM200 is to mount RM-200M, RM-200SA and RM-210 on the wall.

VX-2000DS Emergency Power Supply (ER/UK Version)

VX-2000DS Emergency Power Supply (ER/UK Version)

VX-2000DS ER/UK

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

VX-2000DS Emergency Power Supply (301H Version)

VX-2000DS Emergency Power Supply (301H Version)

VX-2000DS 301H

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

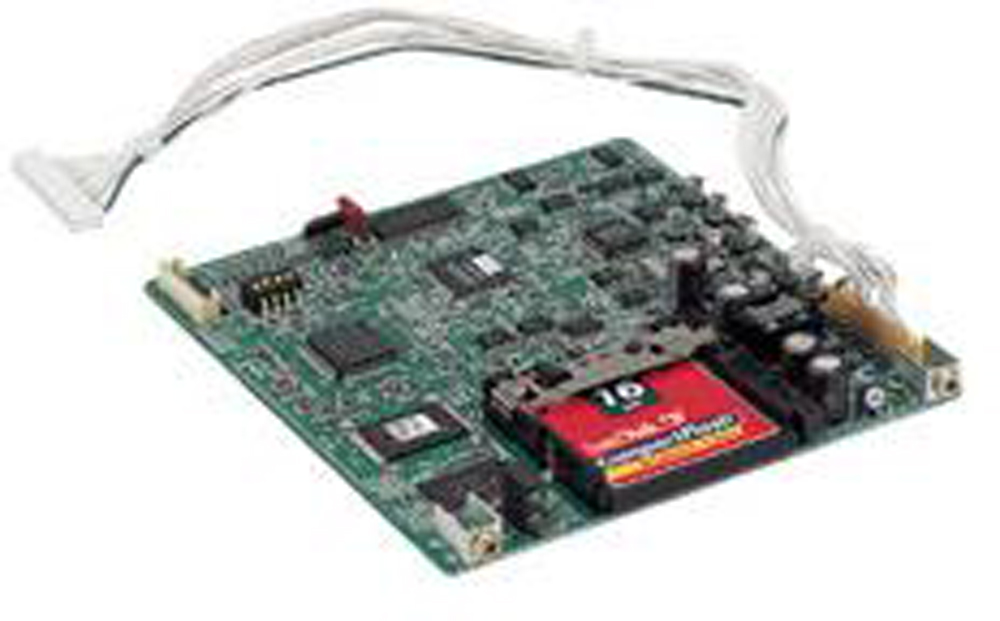

EV-200M Voice Announcement Board

EV-200M Voice Announcement Board

EV-200M

The EV-200M is a playback-only Voice Announcing board to play back the messages recorded on The EV-350R. The EV-200M is designed to be built in the VM-2000 series amplifiers.

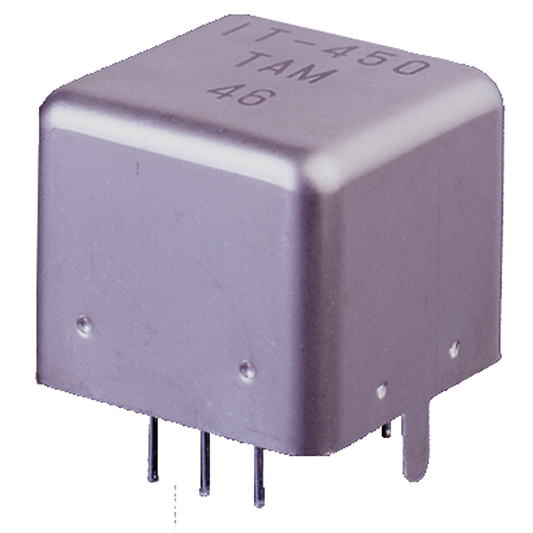

IT-450 Input Transformer

IT-450 Input Transformer

IT-450

Designed to be mounted on the circuit board, the unit converts an input/output of unbalanced type into that of balanced type.

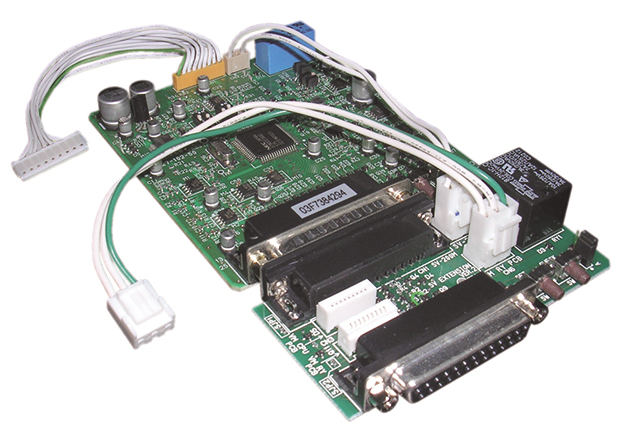

SV-200MA Surveillance Board

SV-200MA Surveillance Board

SV-200MA

Designed to be built in the VM-2120/-2240 amplifiers, the SV-200MA permits monitoring of individual speaker line or power amplifier failures for status indication.

RM-200RJ Terminal Unit

RM-200RJ Terminal Unit

RM-200RJ

The RM-200RJ is designed to convert the RJ45 connector into a screw terminal block. It is used to connect between a trunk cable (such as CPEV cable) and a feeder cable (such as LAN cable) in wiring a remote microphone. The built-in indicator shows the voltage status of DC power cable when the remote microphone cable for the SX-2000 series system is connected.

ZM-104A Impedance Meter

ZM-104A Impedance Meter

ZM-104A

The ZM-104A Impedance Meter can measure the impedance of speaker lines easily in the same manner as a circuit tester measures resistance.

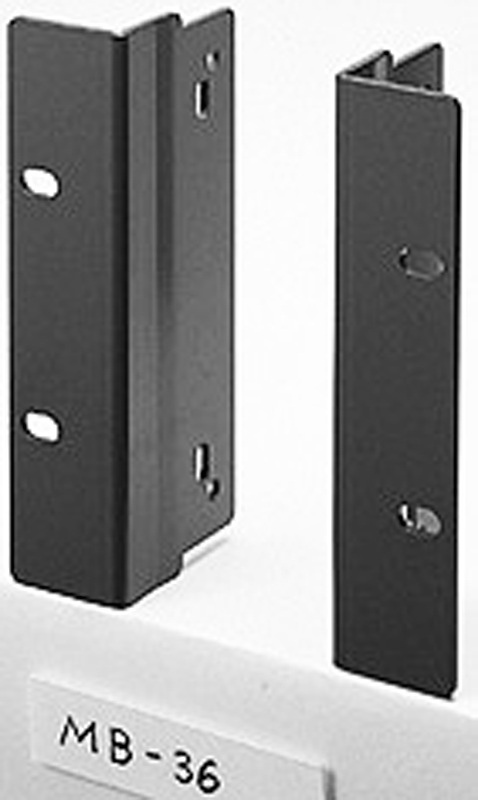

MB-36 Rack Mount Bracket

MB-36 Rack Mount Bracket

MB-36

The MB-36 is used to mount a three-unit size component that is 420 mm width in a component rack.
