VX-1000 Series

VX-1000MC Matrix Controller

VX-1000MC Matrix Controller

VX-1000MC

Matrix controller (VX-1000MC) can broadcast general paging and emergency broadcasting liked with fire alarm system. This system is suitable for medium-sized factories, schools, hospitals, shopping malls, etc., as Public Address system and Emergency Broadcasting system. Standard 2U rack-mounted design, 4.3 inch true color LCD screen, which display information such as working status and equipment parameters.

PM-100VX Paging Microphone

PM-100VX Paging Microphone

PM-100VX

.

VX-1000PF Peering Frame

VX-1000PF Peering Frame

VX-1000PF

Peering Frame (VX-1000PF) is used to supply power to the power amplifier module inserted in it. The operation and fault status of the power amplifier module can be displayed. It can also show if the standby power amplifier is in working order. It supports redundancy for power supply, usually from the Power supply A, when the Power supply A fails, it can automatically switch to Power supply B. When Power supply A returns to normal, it will automatically return to Power supply A. Standard 4U rack-mounted design.

VX-1010ZE Zone Expander

VX-1010ZE Zone Expander

VX-1010ZE

The Zone Expander (VX-1010ZE) is a broadcast zone expansion device, to be use together with VX-1000 Matrix Controller (VX-1000MC) and power amplifiers such as Peering Frame (VX-1000PF) and Power Amplifier Module (VX-1250DA/VX-1500DA) or Power Amplifier (DA-X1000S). It supports 2 levels of priority (General priority and Emergency priority) channels Power amplifier inputs and supports 10-channels speaker zone expansion. The system can be connected up to 16 Zone Expanders with a total of 160 zones. Standard 1U rack-mounted design, it is small, sturdy and durable.

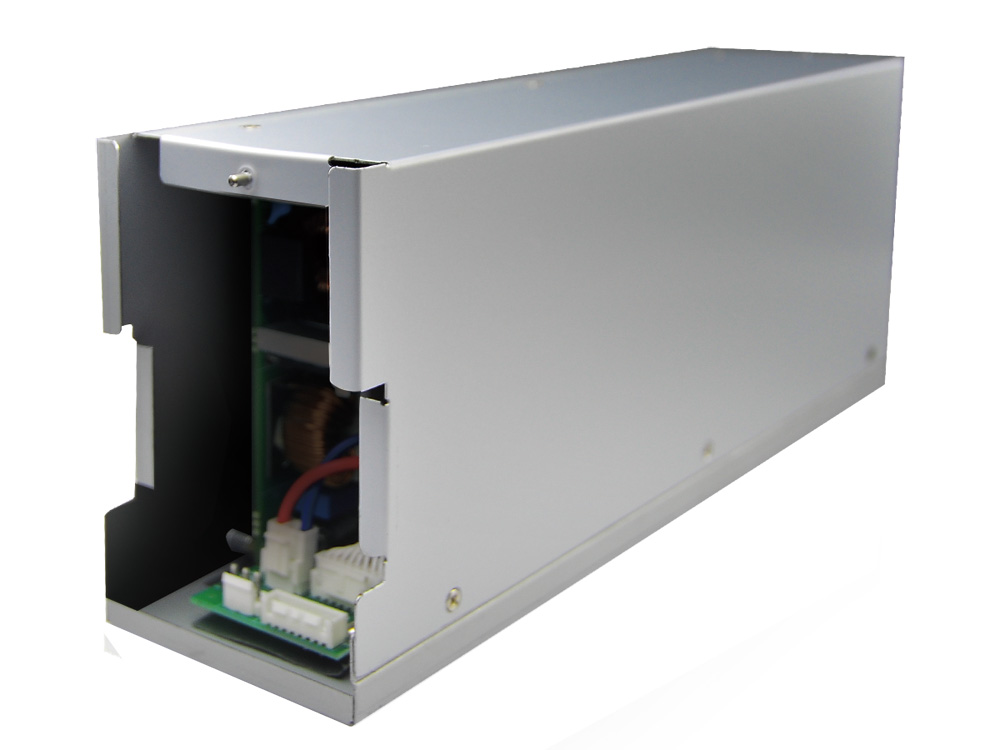

VX-1250DA Power Amplifier Module

VX-1250DA Power Amplifier Module

VX-1250DA

Power Amplifier Module (VX-1250DA) is a Class D, 250W amplifier with high efficiency and energy saving feature. It is a modular, small and light weight design. It has a fault detection function, which can detect faults such as overcurrent, overheat and fan abnormality and displays them on the LED light of the Peering Frame (VX-1000PF).

VX-1500DA Power Amplifier Module

VX-1500DA Power Amplifier Module

VX-1500DA

Power Amplifier Module (VX-1500DA) is a Class D, 500W amplifier with high efficiency and energy saving feature. It is a modular, small and light weight design. It has a fault detection function, which can detect faults such as overcurrent, overheat and fan abnormality and displays them on the LED light of the Peering Frame (VX-1000PF).

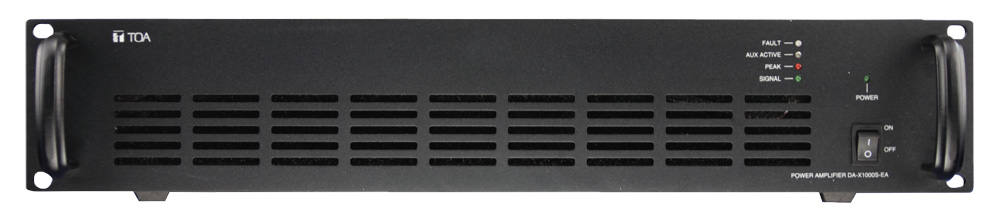

DA-X1000S Power Amplifier

DA-X1000S Power Amplifier

DA-X1000S

Power Amplifier (DA-X1000S) is a 1 Channel x 1000W, Class D power amplifier with high output durable of constant voltage. It can be used as a residential area, school, squares, high-speed railway and other professional broadcast system after the sound drive amplification, using efficient switching power, strong output power. Designed to be Light-weight and standard 2U rack-mounted.

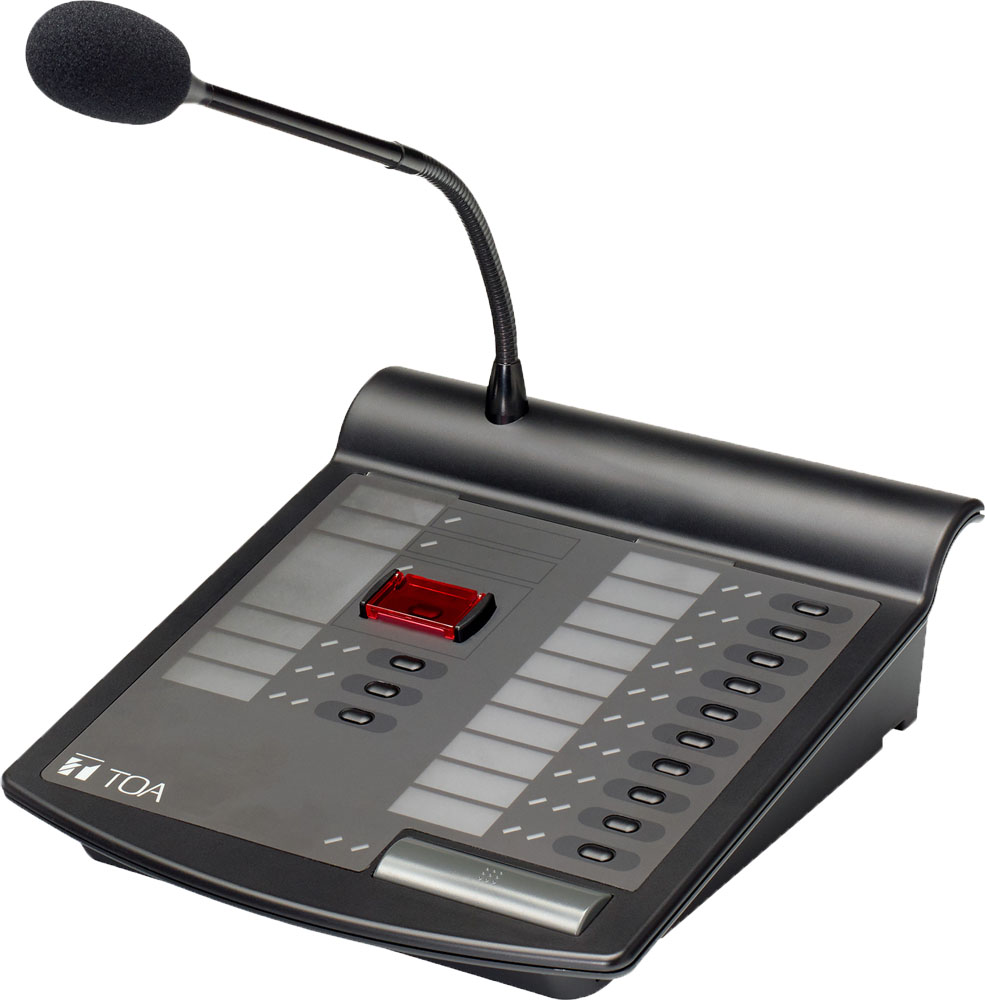

VX-100RM IP Remote Microphone

VX-100RM IP Remote Microphone

VX-100RM

VX-100RM is the IP Remote Microphone for TOA VX-1000 system, it has the functions of initiating general broadcasting, emergency broadcast and also trigger pattern broadcast task by pressing the key. Users can configure the network parameters, extend the number of units and customize function keys through the VX-1000 Setting Software to achieve personalized configuration. Remote Microphone Extension (RM-110VX) unit can be connected to it. Each extension unit has 10 keys, users can add up to 9 units of RM-110VX to achieve a total of 100 function keys.

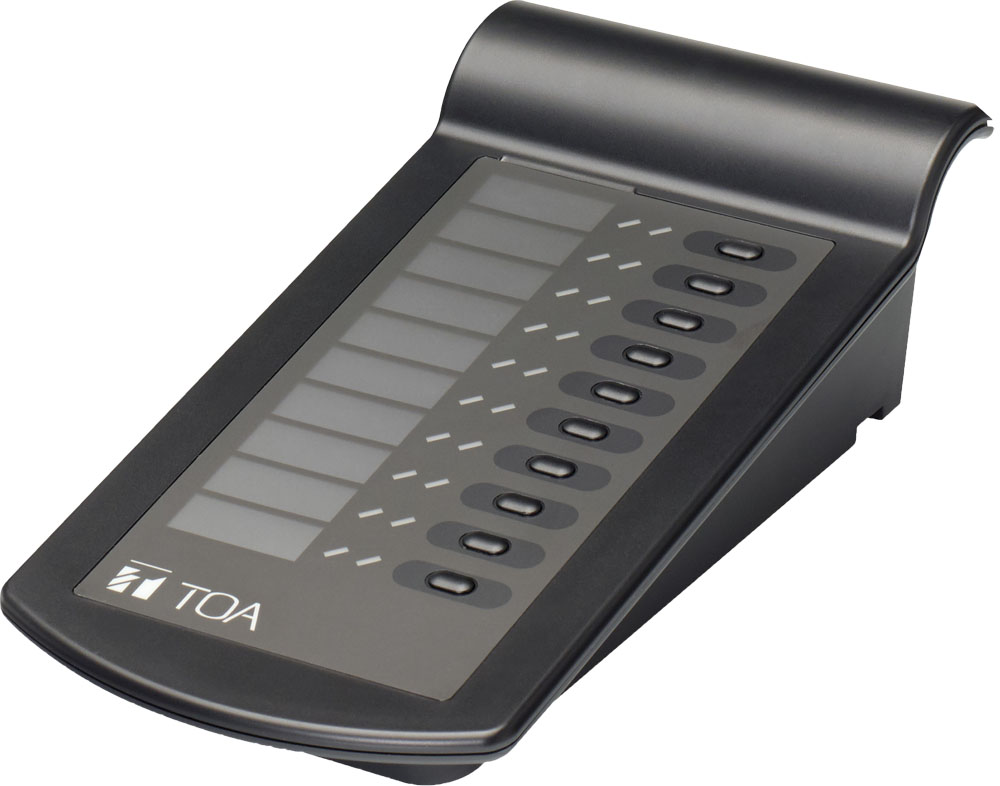

RM-110VX IP Remote Microphone Extension

RM-110VX IP Remote Microphone Extension

RM-110VX

Remote Microphone Extension (RM-100VX) can be connected to VX-1000 IP Remote Microphone (VX-100RM). Up to 9 units are connectable to one VX-100RM. Each extension unit features 10 keys and 10 LEDs. Each keys and LEDs work the same as the VX-100RM keys and LEDs.
