IP-A1 Series

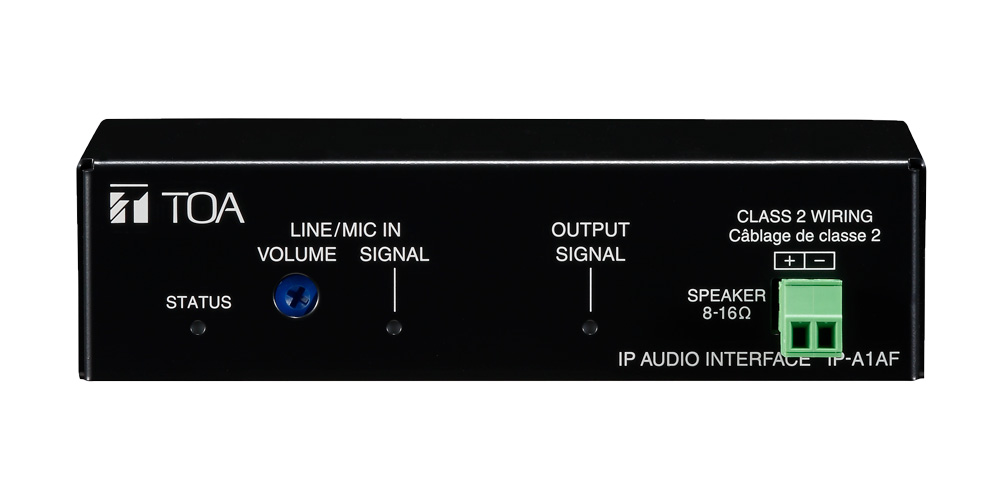

IP-A1AF

The IP-A1AF is a PoE-powered Audio Interface that decodes IP audio streams into analog audio signals. It equipped itself with a built-in 15 W amplifier to drive low-impedance speaker(s) and internal storage, onto which can store up to 20 audio files. Analog audio and control outputs can also be connected to an external amplifier. It supports SIP protocol for integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management Systems (VMS) using ONVIF. Device control and further system integration are accessed through remote API (HTTP) or local control inputs.

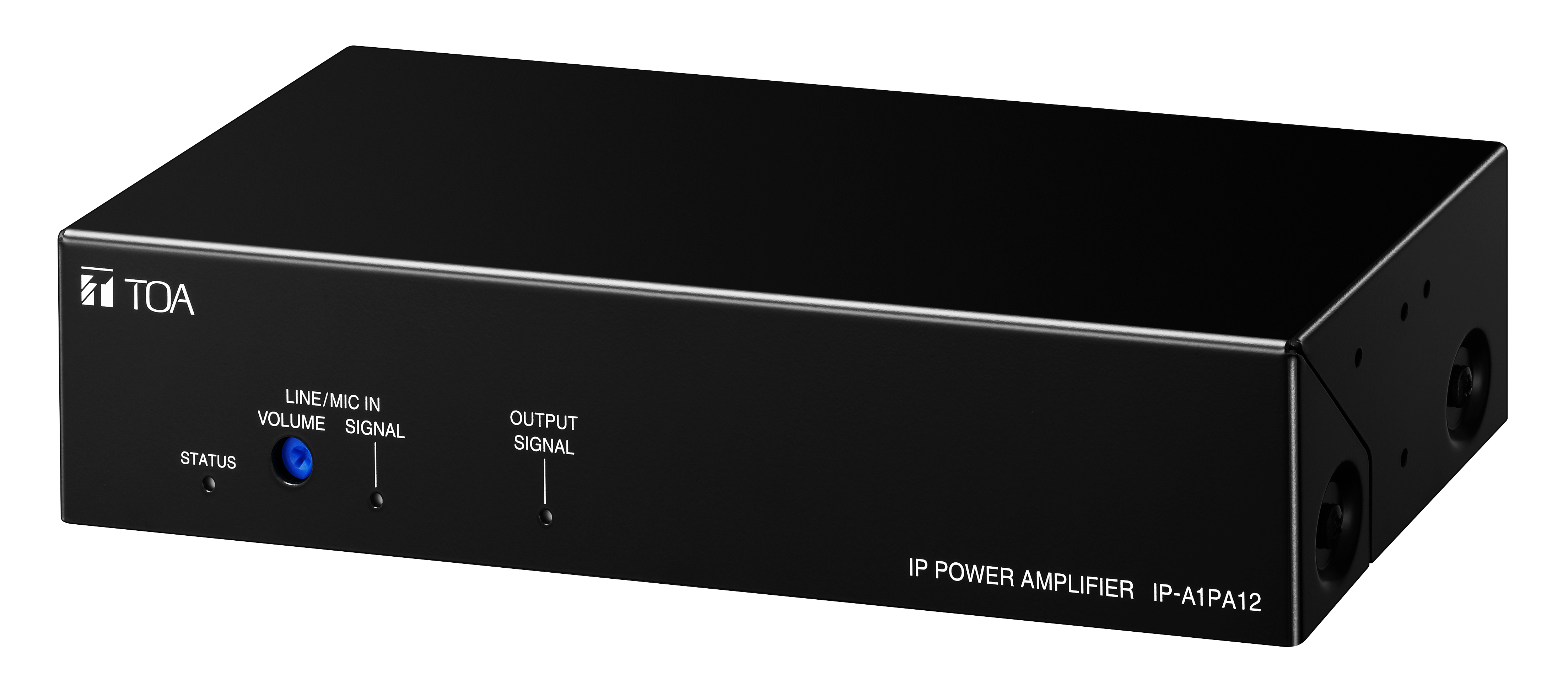

IP-A1PA12

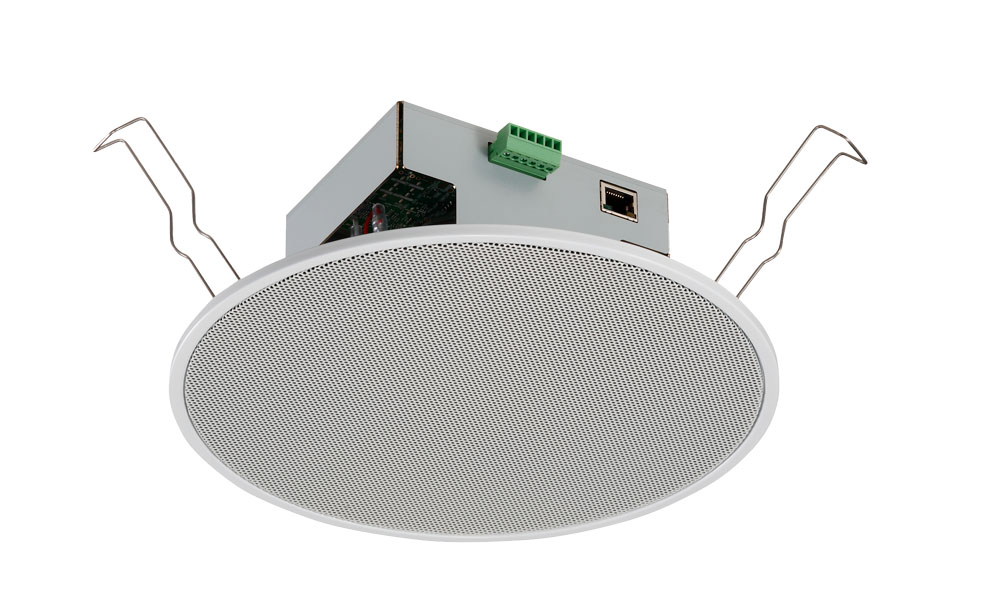

IP-A1PC238

The IP-A1PC238 is a PoE-powered Ceiling Speaker with a built-in 8W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System (VMS) via ONVIF. Device control and further system integration is accessed through remote API (HTTP) or local control inputs.

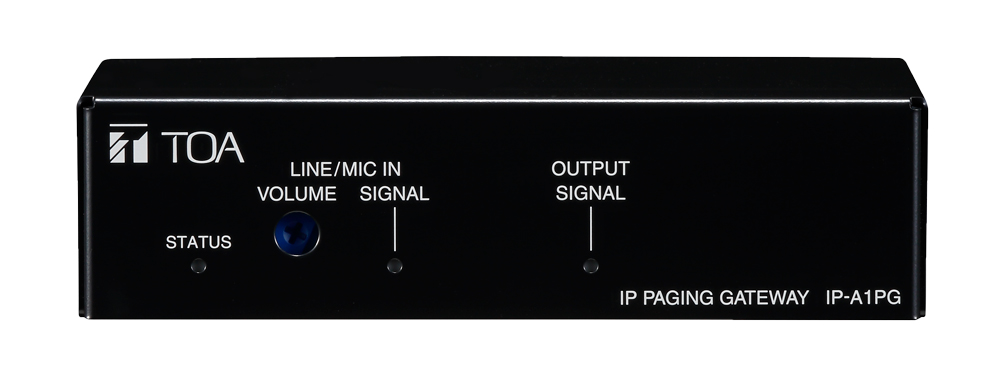

IP-A1PG

The IP-A1PG is a PoE-powered Gateway Unit that integrates multiple IP Audio devices by converting the audio from Video Management Systems using ONVIF or voice from SIP Phone systems into multicast audio streaming. It can also transmit built-in sound source or input audio as multicast audio streaming. Moreover, the event broadcasting triggered by control input, scheduler or remote API (HTTP) as well as the command set that sends multiple HTTP commands simultaneously are also available.

IP-A1RM

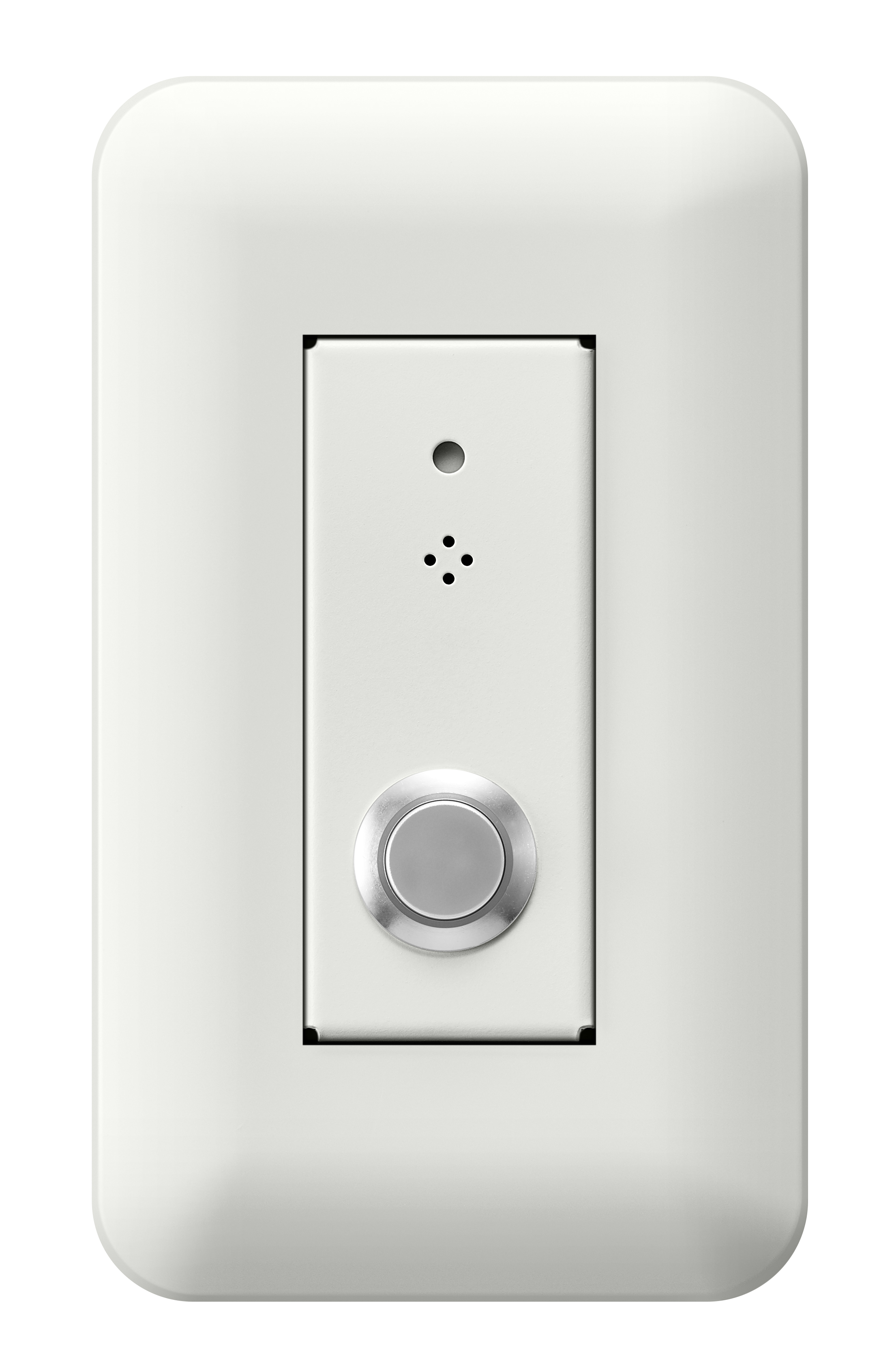

IP-A1MP

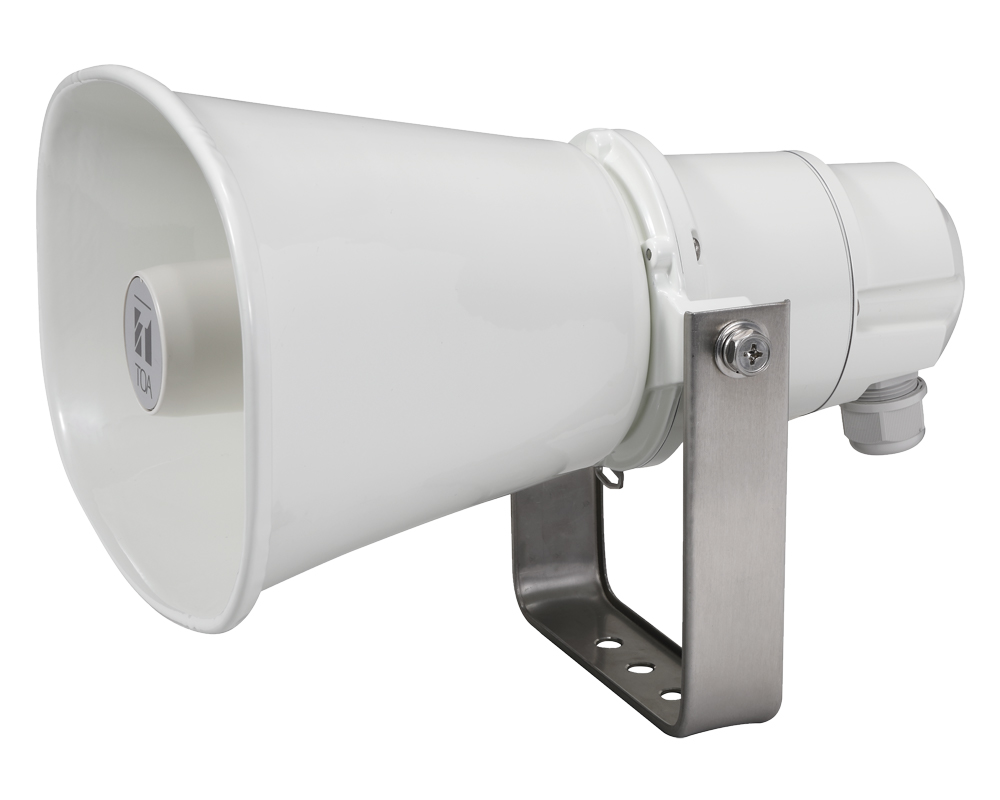

IP-A1SC15
