VM-3000 Series

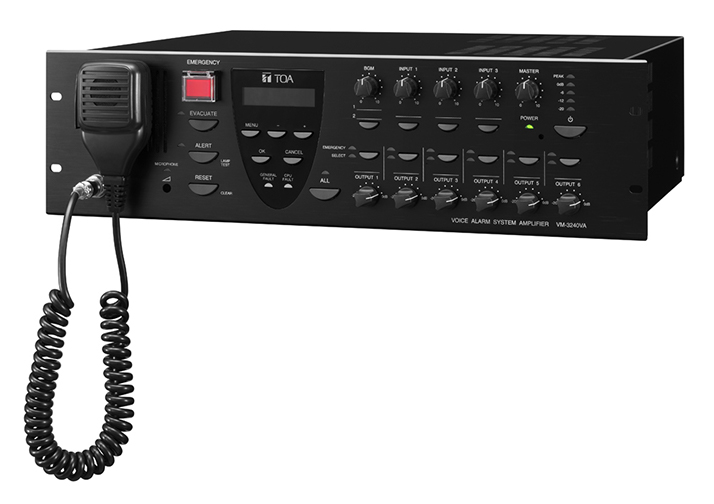

VM-3240VA Voice Alarm System Amplifier 240W

VM-3240VA Voice Alarm System Amplifier 240W

VM-3240VA

The VM-3240VA is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with audio inputs including the background music input, and the speaker output section which has an internal attenuator and 6-output selector. It permits not only general-purpose broadcast, but also Emergency broadcast based on the EN60849 Standard which gives pre-recorded voice instructions in the emergency situation. Emergency broadcast can be made from an optional RM-300MF Fireman's Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, the unit features the surveillance function which automatically checks the system for failures.

VM-3360VA Voice Alarm System Amplifier 360W

VM-3360VA Voice Alarm System Amplifier 360W

VM-3360VA

The VM-3360VA is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with audio inputs including the background music input, and the speaker output section which has an internal attenuator and 6-output selector. It permits not only general-purpose broadcast, but also Emergency broadcast based on the EN60849 Standard which gives pre-recorded voice instructions in the emergency situation. Emergency broadcast can be made from an optional RM-300MF Fireman's Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, the unit features the surveillance function which automatically checks the system for failures.

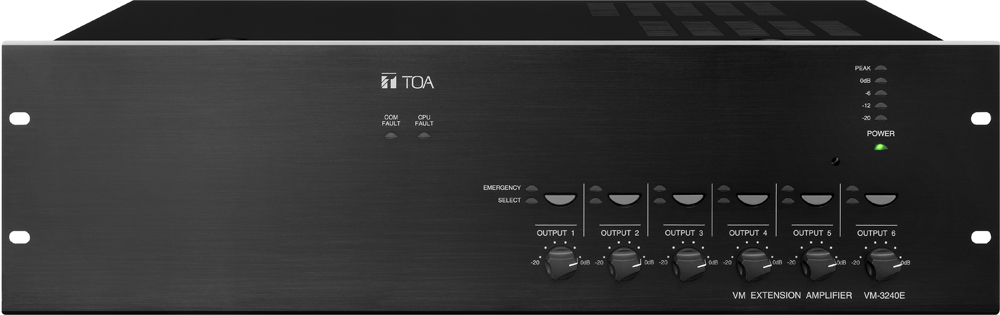

VM-3240E VM Extension Amplifier 240W

VM-3240E VM Extension Amplifier 240W

VM-3240E

The VM-3240E is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.

VM-3360E VM Extension Amplifier 360W

VM-3360E VM Extension Amplifier 360W

VM-3360E

The VM-3360E is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.

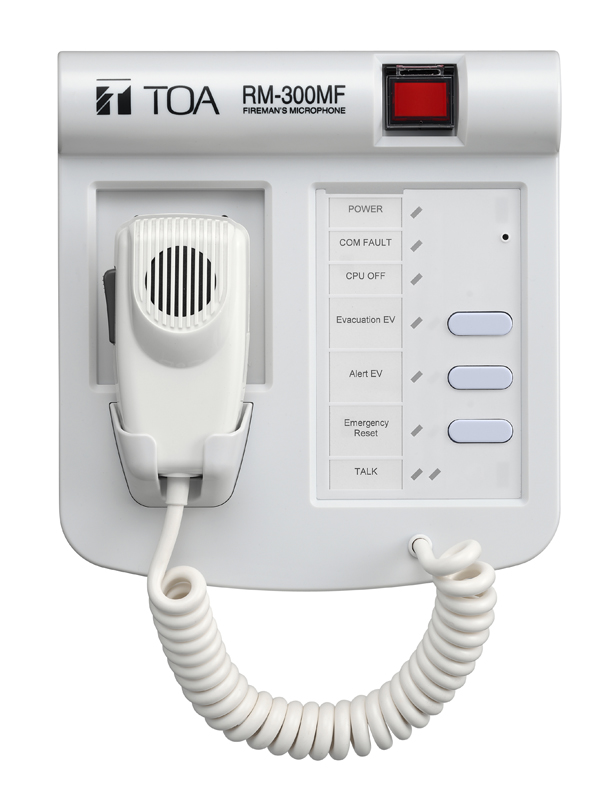

RM-300MF Fireman's Microphone

RM-300MF Fireman's Microphone

RM-300MF

The RM-300MF Fireman's Microphone is designed for exclusive use with the VM-3000 Series. It is equipped with an emergency activation key, permitting pre-recorded evacuation and alert announcements to be activated, and microphone announcement to be made in emergency situations. By connecting the RM-320F Fireman's Microphone Extension to the RM-300MF, the number of function keys can be expanded. The zone selection or failure acknowledgment function can be assigned to such function keys.

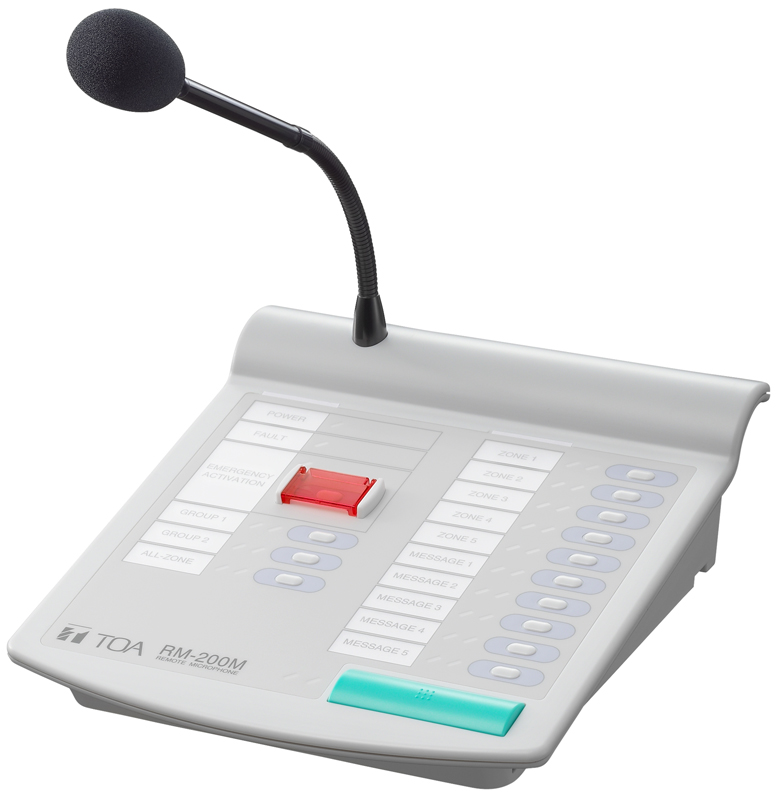

RM-200M Remote Microphone

RM-200M Remote Microphone

RM-200M

The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.

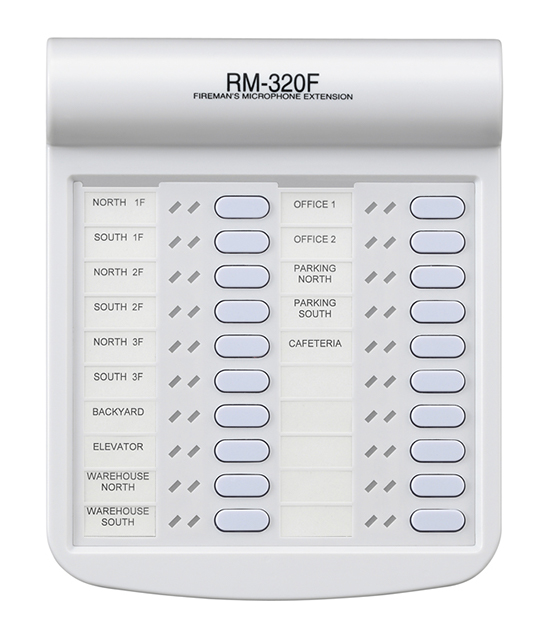

RM-320F Fireman's Microphone Extension

RM-320F Fireman's Microphone Extension

RM-320F

The RM-320F is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

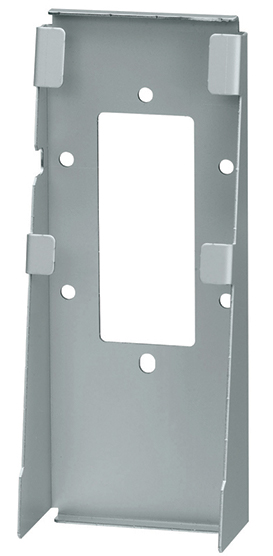

WB-RM200 Wall Mount Bracket

WB-RM200 Wall Mount Bracket

WB-RM200

The WB-RM200 is to mount RM-200M, RM-200SA and RM-210 on the wall.

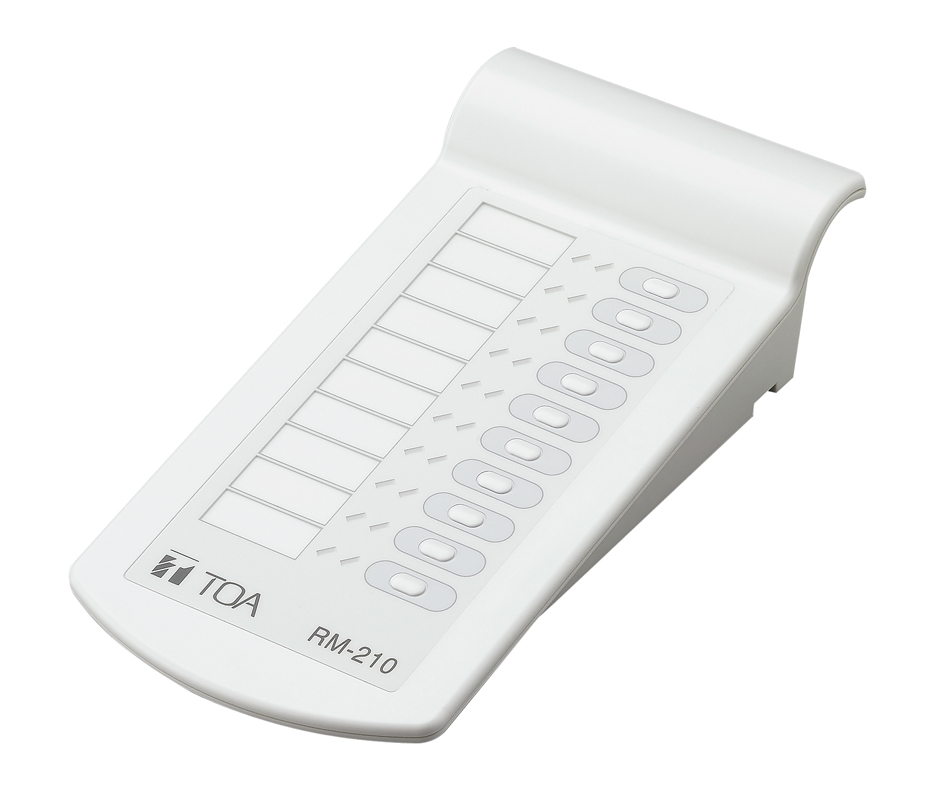

RM-210 Remote Microphone Extension

RM-210 Remote Microphone Extension

RM-210

The RM-210 is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

VX-2000DS Emergency Power Supply (ER/UK Version)

VX-2000DS Emergency Power Supply (ER/UK Version)

VX-2000DS ER/UK

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

VX-2000DS Emergency Power Supply (301H Version)

VX-2000DS Emergency Power Supply (301H Version)

VX-2000DS 301H

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the SX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

VM-300SV Pilot Tone Detection Module

VM-300SV Pilot Tone Detection Module

VM-300SV

Speaker line failure can be detected with greater accuracy when a VM-300SV unit specifically designed for 100 V speaker line is connected between the speaker line end and the emergency input terminal of the VM-3240VA, VM-3360VA, VM-3240E or VM-3360E.

RM-200RJ Terminal Unit

RM-200RJ Terminal Unit

RM-200RJ

The RM-200RJ is designed to convert the RJ45 connector into a screw terminal block. It is used to connect between a trunk cable (such as CPEV cable) and a feeder cable (such as LAN cable) in wiring a remote microphone. The built-in indicator shows the voltage status of DC power cable when the remote microphone cable for the SX-2000 series system is connected.

ZM-104A Impedance Meter

ZM-104A Impedance Meter

ZM-104A

The ZM-104A Impedance Meter can measure the impedance of speaker lines easily in the same manner as a circuit tester measures resistance.
