TS-802

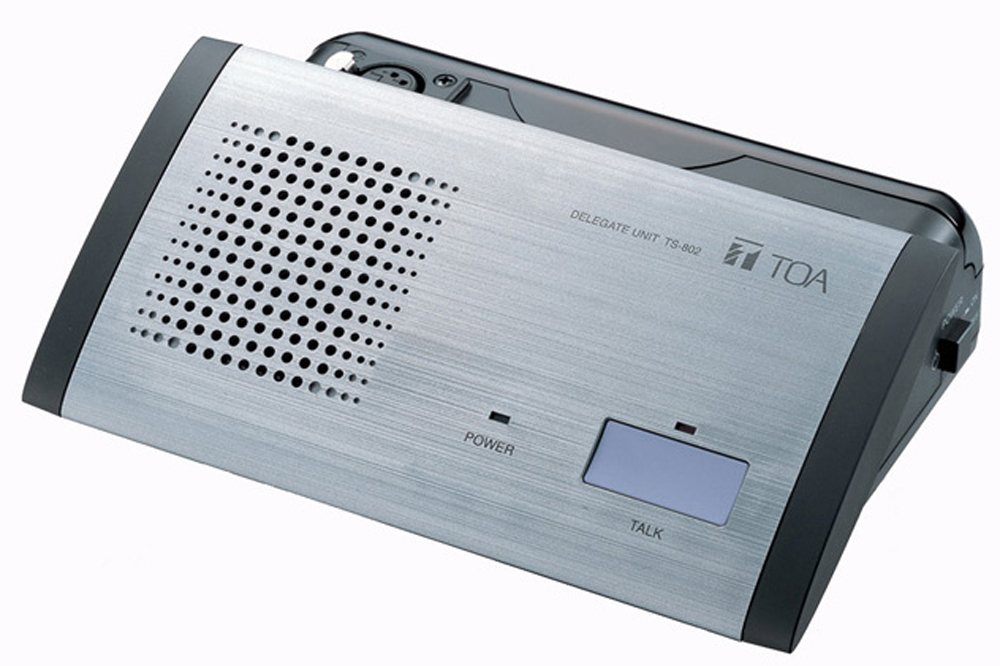

The TS-802 is a Delegate unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-802 as optional products: the TS-903 standard type and the TS-904 long type.

Power Source 7.4 V DC (battery), 9 V DC (AC adapter)
(supplied from BP-900 battery (option) or AD-0910 AC adapter (option))
Current Consumption Max. 270 mA

Infrared Emitter/Detector
Wavelength 870 nm (AM: Brightness modulation)
Modulation Method Frequency modulation
Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Audio channel: 1.95 MHz
Acceptance Angle Vertical: 90゜, Horizontal: 120゜
Emission Angle Vertical: 90゜, Horizontal: 120゜
Covering Range 7 m (22.97 ft) (radius)



Input Microphone terminal: XLR-4-31 type
(dedicated for connecting the optional TS-903 or TS-904)
Output Monitor speaker: 8 Ω, 0.2 W
Headphone: φ3.5 mm mini Jack (3P:monaural) × 2
LED Indicator Speech indicator (flashes when the unit is out of communications range),
Power indicator (flashes when the unit is out of communications range or when the battery level is low)
Function Monitor volume control, Headphone volume control
Battery Life Approx. 10 hours (when the fully-charged BP-900 battery is used with "During speech" to "Standby" ratio of 1:2)
Operating Temperature "0 ℃ to +40 ℃ (32
