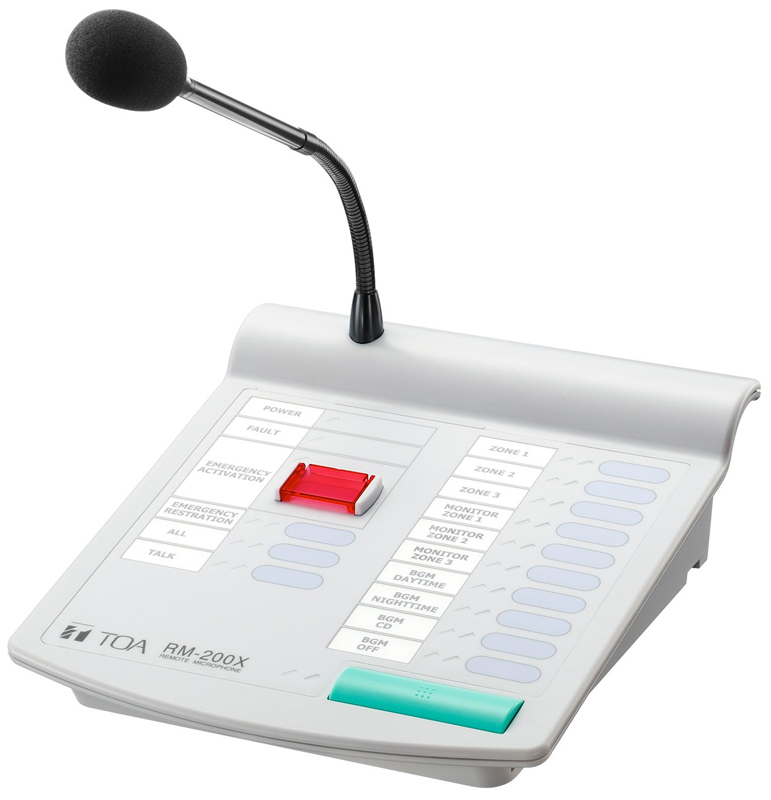

RM-200X
The RM-200X is a dedicated unit for the VX-2000 system, and permits emergency broadcast as well as general-purpose broadcast.
- * 0 dB = 1 V
| Power Source | 24 V DC (operating range: 16 - 40 V DC), supplied from RJ45 connector or power input jack (non-polarity type) Usable power input plug: 5.5 mm outer diameter, 2.1 mm inner diameter, and 9.5 mm long. |
|---|---|
| Current Consumption | Under 200 mA (RM-200X), 750 mA (with 9 RM-210s connected) |
| Audio Output | 0 dB*, 600 Ω, balanced, RJ45 connector |
| Gooseneck Microphone | Unidirectional electret condenser microphone |
| External Microphone Input | -40 dB*, 2.2 kΩ, unbalanced, mini jack, phantom powering |
| Distortion | Under 1% |
| Frequency Response | 100 - 20,000 Hz |
| S/N Ratio | Over 60 dB |
| Internal Monitor Speaker | 200 mW |
| Volume Control | Microphone volume control, Monitor speaker volume control |
| Number of Function Keys | 15, extendable up to 105 (with 9 RM-210s connected) |
| Key Extension | 10 keys extension per RM-210, EXTENSION connector |
| Number of Connectable Units | 8 (include RM-200XF) |
| Communication System | LONWORKS Twisted Pair Free Topology Transceiver |
| Connection Cable and Connector | Category 5 STP cable, RJ45 connector |
| Communication Distance | 500 m (Free topology wiring) |
| Finish | ABS resin, blueish gray (PANTONE 538 or its equivalent) |
| Dimensions | 190 (W) × 76.5 (H) × 215 (D) mm (gooseneck microphone excluded) |
| Weight | 850 g |
