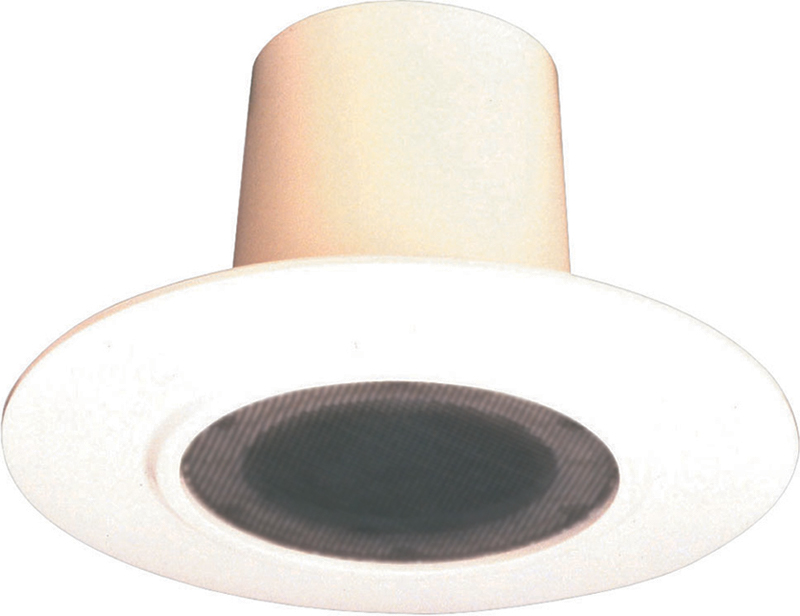

PC-3WR
The TOA PC-3WR is a completely-sealed, flush-mounted ceiling speaker employing a high power handling, splash-proof, small full-range speaker. It can be quickly installed by means of a spring catch system, reducing labor in construction work. Its ideal applications include washrooms, locker rooms of the pool, and other humid locations.
| Rated Power | 3 W, 1 W |
|---|---|
| Rated Impedance | 3.3 kΩ (3 W), 10 kΩ (1 W) |
| Sound Pressure Level | 88 dB (1 W, 1 m) |
| Frequency Response | 180 Hz - 20 kHz |
| Ambient Temperature | -10 ℃ to +50 ℃ |
| Dust/Water Protection | IP64 |
| Finish | Frame and case: ABS resin, off-white Punching net: stainless steel |
| Dimensions | φ180 × 120 (D) mm |
| Weight | 700 g |
| Dimension for Fixing Holes | φ150 mm (The speaker can be mounted to the ceiling panel with thickness of up to 50 mm) |
