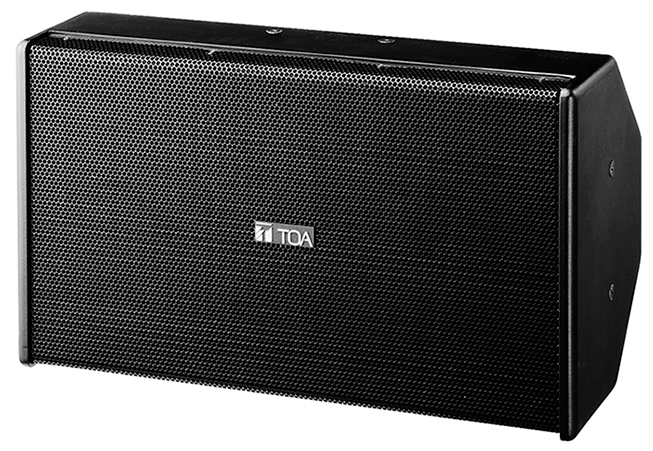

ES-0851
The ES-0851 is a heavy-duty two-way speaker system designed for use in both temporary and permanent installations. Properly-designed built-in passive network ensures superb quality and high power handling capability. The speaker's 90-degree wedge shape and its optional mounting bracket permit the speaker to be mounted closely to walls and ceilings.
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 200 W Continuous program: 600 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 97 dB (1 W, 1 m) |
| Frequency Response | 80 - 20,000 Hz |
| Crossover Frequency | 1,800 Hz |
| Speaker Component | Low frequency: 25 cm cone-type High frequency: CD horn (90゜ horizontal × 60゜ vertical or 60゜ horizontal × 90゜ vertical) fitted with compression driver |
| Input Connector | Neutrik NL4MP × 2 and M5 screw terminal, distance between barriers: 12.2 mm |
| Finish | Enclosure : Plywood, black, urethane paint Front grille: Steel plate, black, acrylic paint |
| Dimensions | 580 (W) × 330 (H) × 255 (D) mm |
| Weight | 20 kg |
| Option | Mounting bracket: HY-0851ST, HY-0852ST, HY-0851CL, HY-B0801, HY-C0801, HY-W0801 Stand: ST-32 (Can be used either alone or in combination with HY-0851ST.) |
