ER-1206W

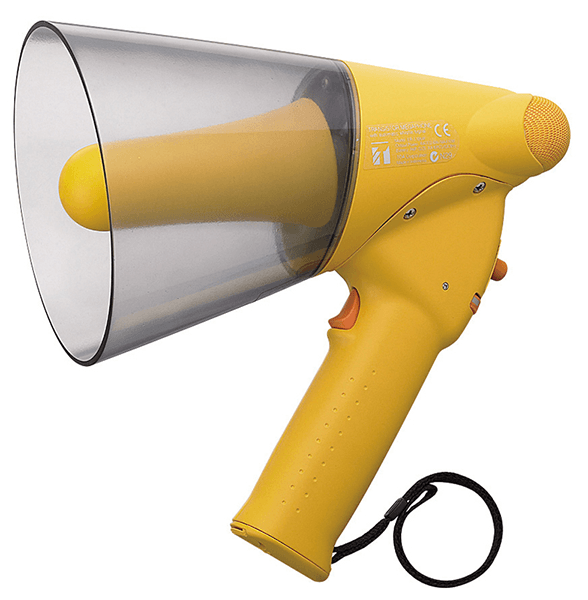

The ER-1206W is a compact splash-proof megaphone rated at 6 W output featuring a built-in whistle. It features IPX5 water-jet-resistant designs. A whistle tone can be used for attracting attention. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.

Power Source R6P (AA) × 6 (9 V DC) or R6P (AA) × 4 (6 V DC)
Rated Output 6 W (when using six R6P batteries)
Maximum Output 10 W (when using six R6P batteries)
Battery Life When using six R6P batteries (JEITA)(*1)
Voice: Approx. 8 hours, Whistle: Approx. 20 minutes
When using four R6P batteries(*2) (JEITA)(*1)
Voice: Approx. 5 hours, Whistle: Approx. 10 minutes
Audible Range Voice: Approx. 250 m (JEITA)(*1), Whistle: Approx. 315 m (JEITA)(*1)
Signal Sound Whistle
Frequency Response 450 Hz - 6 kHz (SPL -20 dB)
Magnetic Circuit Neodymium magnet, inner magnet type
Diaphragm Polyimide film (voice coil, bobbin)
Water Protection IPX5
Operating Temperature -10 ℃ to +40 ℃
Finish Horn: ASA resin, clear dark gray
Other: ASA resin, yellow
Strap: Nylon, black
Dimensions 154 (W) × 266 (H) × 250 (D) mm
Weight 680 g (without batteries)
Accessory Battery spacer …1
Option Wall mounting bracket for megaphone: SP-1100
