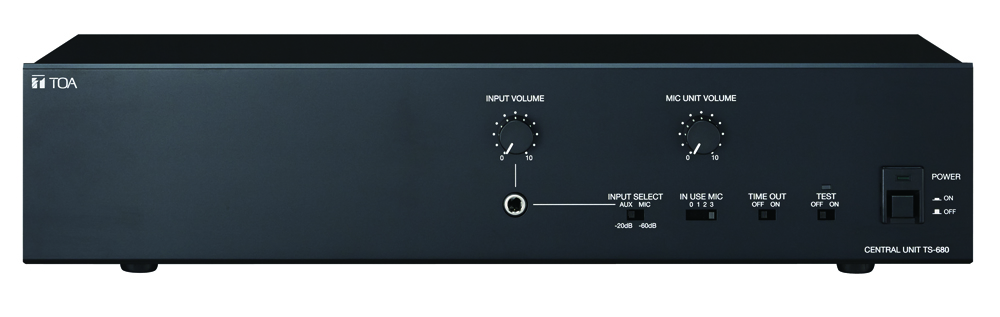

TS-680-AS *AS Model*
The TS-680 is a Central Unit for TOA Conference System, TS-680 Series. Use of its line connection terminals permits connections to the conference units of TS-681L & TS-682L, making up a conference system. With the use of an optional rack mounting bracket, it can be mounted in a EIA Standard equipment rack, occupying 2 unit size.
- * 0 dB = 1 V
| Power Source | 220 - 240 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 20 W |
| Rated Output | 36 V DC, 480 mA |
| Input | Selectable MIC or AUX Mic: -60dB*, 600 Ω, unbalanced, phone jack AUX: -20 dB*, 10 kΩ, unbalanced, phone jack |
| Output | Recording: -20dB*, 10 kΩ, unbalanced, RCA jack |
| Number of Connectable Units | Max. 24 units |
| Control | Priority speech chime: Operation of TS-681L's priority key activates a single-tone chime Speaker restriction: Number of simultaneously-usable TS-682L can be set up to 0-3 Automatic Mic-Off Function: OFF, 30s (selectable) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Panel: Aluminum, black. 30% gloss, paint Case: Steel plate, black, 30% gloss, paint |
| Dimensions | 420(W) x 96.1 (H) x 222.5(D) mm (16.54” x 3.78” x 8.76”) |
| Weight | 2.7 kg (5.95 lb) |
| Accessory | Power Cord (2m) x 1 |
| Option | Extension cord: YR-780-2M, YR-780-10M Rack mounting bracket: MB-23B |
