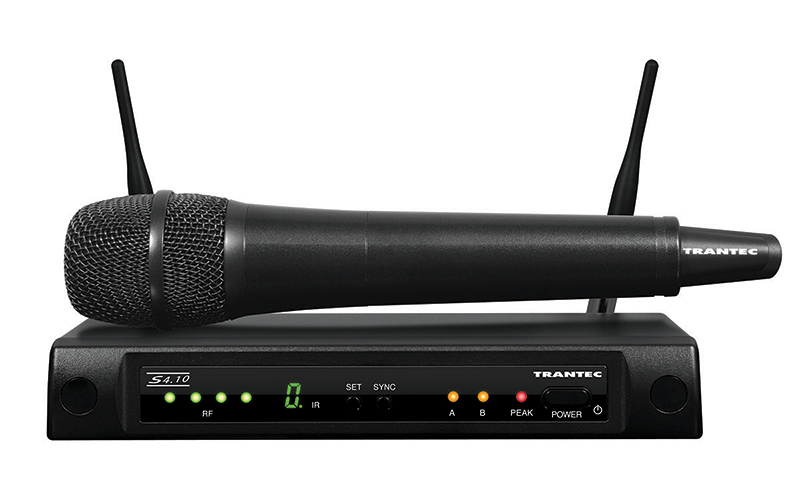

S4.10-HD *AS Model*
The Trantec S4.10 Series is designed to make multi channel wireless as simple as possible. The system is encased in a sturdy yet compact metal frame. It can be used with a wide range of microphones, or musical instruments making it the perfect solution for amateur and semi professional musicians and theatre performers.
- (*1) 0 dB = 1 V
| Product Composition | Handheld wireless microphone x 1 Receiver x 1 |
|---|---|
| Frequency Range | 506 - 937.5 MHz (*1), UHF |
| Channel Selectable | Up to 16 channels (depending on region) |
| Tunable Frequencies | 25 kHz Steps |
| Pilot Tone | 32.768 kHz |
| Total Harmonic Distortion | <1% @ 1kHz |
| Function | IR sync, Channel scan, Battery Life indicator |
| Accessory | AC adapter (*2) x 1 Microphone holder W5/16" x 1 |
Wireless Microphone
| Microphone Element | Dynamic with cardioid pattern |
|---|---|
| RF Carrier Power | 10 mW |
| Audio Frequency Response | 80 - 15,000 Hz |
| Audio Input Level | 140 dB SPL (Maximum) |
| Modulation System | PLL synthesizer |
| Battery | 1 AA size alkaline battery, 1.5V |
| Battery Life | Approx. 10 hours |
| Indicator | Battery Status LED, 7 Segments LED |
| Finish | Resin, coating |
| Dimensions | Approx. 250 x 50 mm |
| Weight | Approx. 245 g (with battery) |
Wireless Receiver
| Diversity Reception | AC mains (supplied AC-DC adapter must be used) |
|---|---|
| Sensitivity | 10uV at 45dBA S/N |
| Squelch (SQ) | Tone SQ, Carrier SQ and Noise SQ |
| Audio Frequency Response | 50 - 15,000Hz |
| Audio Output Level (Maximum) | S4.10-RXA Balanced (XLR socket): 16dBu Unbalanced (1/4" jack socket): 10dBu |
| Power Supply | 11-18 VDC 300mA |
| Dimensions | 215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC) |
| Weight | 480 g |
