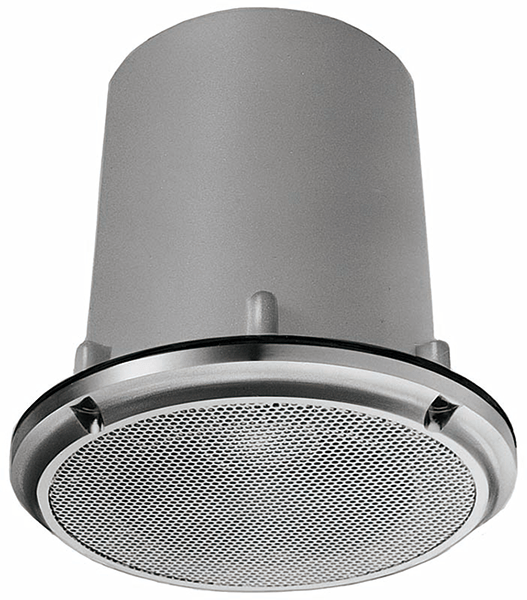

PC-5CL *AS Model*
Full-range 8cm, 2 kΩ/5W speaker with sealed rear chamber and high-molecular substance speaker vibration section to prevent floating dust particles from contaminating medical, chemical, or IC/Photo film production.
| Rated Power | 5 W |
|---|---|
| Rated Impedance | 100 V line: 2 kΩ (5W), 70 V line: 2 kΩ (2.5W) |
| Sensitivity | 87 dB (1 W, 1 m) |
| Frequency Response | 150 - 20 kHz |
| Enclosure | Completely sealed type |
| Speaker Component | 8cm cone-type (vibration section: high molecular substance) |
| Operating Temperature | -20°C to +55°C |
| Dust Particle Prevention | No dust particle is produced by the method set out in JIS B-9926 |
| Finish | Panel: Alloy-coated, ABS resin |
| Dimensions | Φ116 x 110 (D) mm |
| Weight | 620 g |
| Dimensions for Fixing Holes | Φ98 mm |
| Accessory | Fixing gasket x 1, Ceiling Mounting Screws (Material: Stainless Steel) x 4 |
