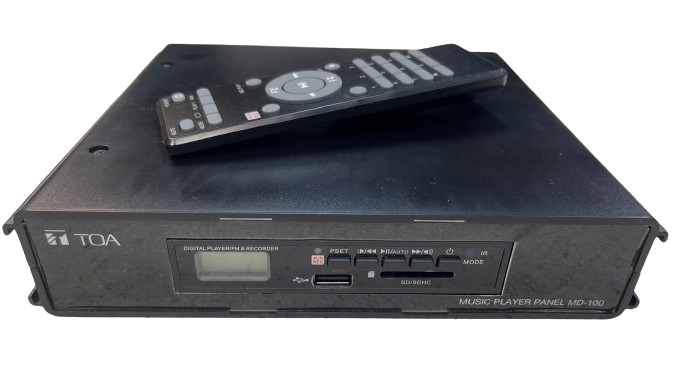

MD-100-AS
TOA MD-100-AS Media Player is a digital audio player and digital processing FM radio tuner.
The unit has an MP3 USB, SD Card, and MP3 Playable. The unit can be mounted on an EIA equipment rack.
| Power Source | 12 - 24V DC |
|---|---|
| Power Consumption | 150 mA ( at 12 V ), 200 mA ( at 24 V ) |
| Frequency Response | 30 - 20,000 Hz |
| Audio Input | USB port for memory stick (up to 32 GB, Type file : MP3 file) SD/MMC card slot (up to 32 GB, Type file : MP3 file) RCA audio input L and R channels for recording Bluetooth FM antenna terminals |
| Audio Output | RCA audio output L and R channels |
| Antenna | Terminal Plug |
| Operating Temperature | 0 °C to +40 °C |
| Finish | Case: ABS resin, block |
| Dimensions | 210 (W) × 44 (H) × 186.7 (D) |
| Weight | 750g |
| Accessories | Remote Control ... 1 Removable Terminal Plug (2 pins) ... 1 Cable Audio RCA-2 to RCA-2 ... 1 |
| Option | Rock mounting bracket : MB-WT3 (for rock mounting one unit) MB-WT4 (for rock mounting two unit) AC/DC Adapter: AD-246 |
